Tesla Universal Wall Connector 48 Amp White Wall Charger

Tesla Universal Wall Connector 48 Amp Wall Charger White

Universal Solution for Fast Electric Vehicle Charging

Tesla Universal Wall Connector 48A is an intelligent Level 2 wall-mounted charging device designed for charging both Tesla vehicles and other electric car brands. It is ideal for installation in private homes, garages, parking lots, hotels, and offices. With a power output of up to 11.5 kW, the charger adds up to 70 km of range per hour of charging, ensuring fast and safe energy replenishment with minimal loss.

Compatibility with All Electric Vehicles

The model is equipped with an integrated J1772 adapter, making it fully compatible with all major electric vehicles, including Tesla, Rivian, Ford, Lucid, Chevrolet, Nissan, and others.
The system automatically detects the connected plug type (NACS or J1772) and adjusts the energy delivery, ensuring optimal and safe charging.

Compatibility advantages:

• Supports all North American electric vehicles;

• Automatic detection of the connected adapter;

• Fast charging for Tesla and non-Tesla EVs in one unit;

• Universal 7.3 m cable for convenient connection.

Fast and Safe Charging

The Tesla Universal Wall Connector 48A provides up to 11.5 kW of power when connected to a 60A circuit breaker.
With intelligent control and built-in overload protection, the device ensures complete safety during operation.

Main charging characteristics:

• Charging power: up to 48 amps;

• Charging level: Level 2 (AC);

• Nominal voltage: 200–240 V AC;

• Charging speed: up to 70 km of range per hour;

• Built-in GFCI protection against current leakage;

• Firmware updates via Wi-Fi for improved performance.

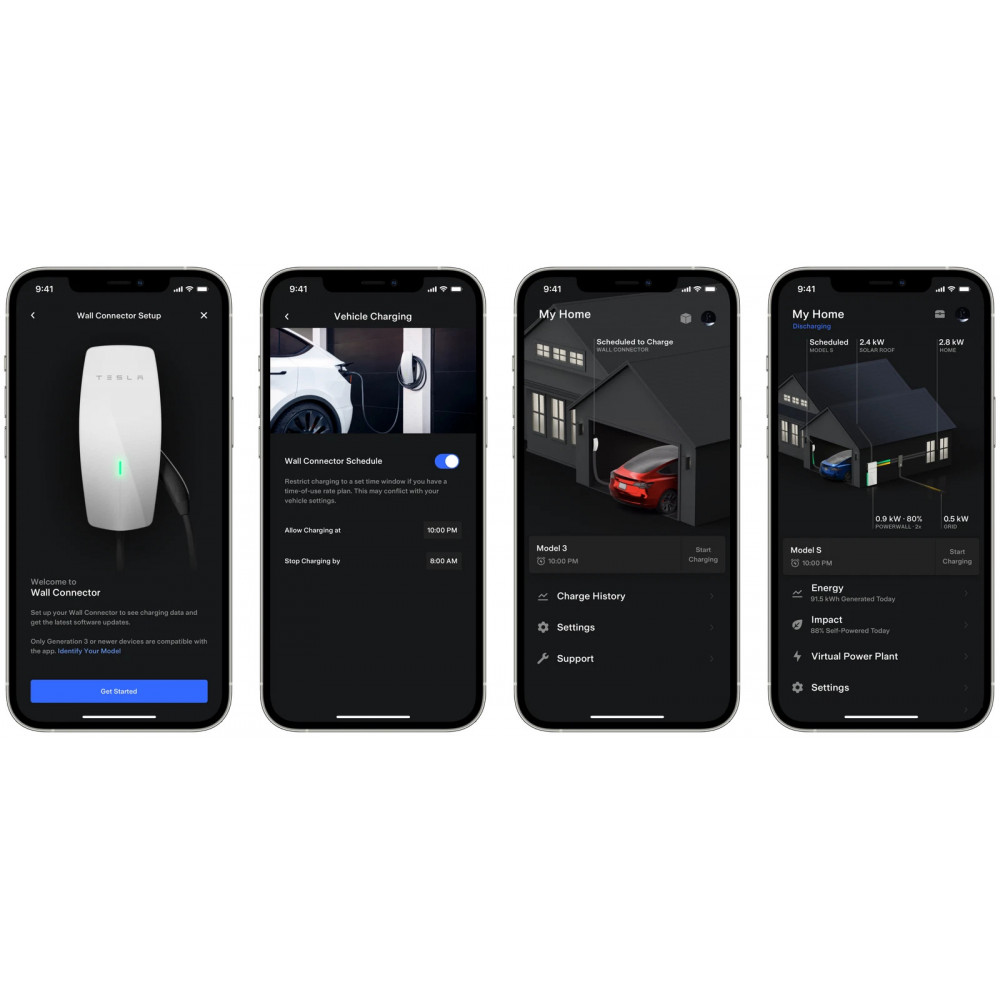

Smart Control via the Tesla App

The charger connects to Wi-Fi and synchronizes with the Tesla mobile app, allowing users to:

• Monitor the charging process in real time;

• Manage schedules and power limits;

• Analyze energy consumption;

• Receive over-the-air firmware updates (OTA).

Integration with Powerwall

The device can be paired with Tesla Powerwall to use stored energy for charging during power outages.
In addition, Powershare technology allows certain Tesla models to supply power back to your home from the vehicle’s battery in emergencies.

Ergonomic and Elegant Design

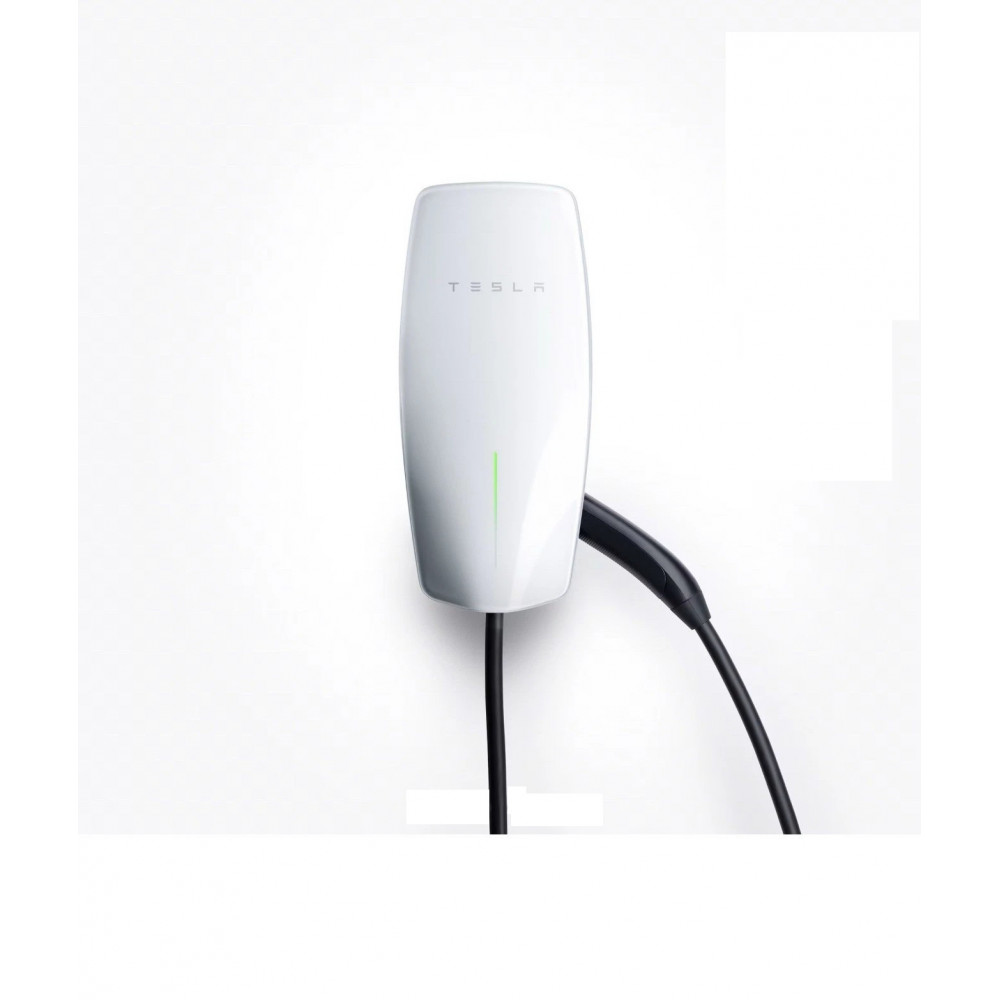

The charger features Tesla’s minimalist design — a sleek white body with a brand logo and LED status indicator.
The housing is made of durable, moisture-resistant plastic with an NEMA 3R rating, making it suitable for both indoor and outdoor installation.

Design features:

• Compact body — easily mounts on a wall or stand;

• Automatic Tesla charge port opening when the cable is approached;

• Cable length of 7.3 m ensures installation flexibility;

• Quiet operation with no vibration or fan noise.

Easy Installation and Operation

The charger comes with a mounting kit and can be installed by a certified electrician in less than an hour.
It requires a circuit breaker rated at 60, 50, 40, 30, 20, or 15 amps, depending on electrical system parameters.

Package Contents

• Tesla Universal Wall Connector 48A charger;

• Integrated J1772 adapter;

• 7.3 m charging cable;

• Mounting hardware;

• User manual.

Recommendations for Selection and Use

1. Ensure your electrical system supports a voltage of 200–240 V.

2. Installation should be performed by a qualified electrician.

3. Connect the charger to Wi-Fi for optimal performance.

4. For outdoor installations, mount the device on a vertical wall with weather protection.

Technical Specifications

• Brand: Tesla

• Country of brand registration: USA

• Model: 1734411-02-E

• Type: wall-mounted charger

• Purpose: electric vehicle charging

• Charging level: Level 2 (AC)

• Connection type: hardwired

• Nominal voltage: 200–240 V

• Power: 11.5 kW

• Current: 48 A

• Phases: 1

• Frequency: 50–60 Hz

• Cable length: 7.3 m

• Connector types: Tesla (NACS), SAE J1772

• Integrated adapter: J1772

• Compatibility: all Tesla and non-Tesla EVs (Type 1 plug)

• Housing material: plastic

• Color: white

• Dimensions in cm: 34.5 × 15.5 × 11

• Weight: 5.8 kg

• Mounting type: wall or stand

• Control: via Tesla app

• Connectivity: Wi-Fi

• Overload protection: yes

• Moisture and dust protection: NEMA 3R

• Operating temperature: −30 to +50 °C

• Number of vehicles charged simultaneously: 1

• Energy efficiency: ENERGY STAR Certified

• Safety certifications: cULus, UL Listed (E351002)

• Packaging material: cardboard

• Warranty: 4 years (residential), 1 year (commercial)

• Powerwall compatibility: yes

• Firmware updates: yes (OTA)

• Installation type: wall-mounted

• Charging management: automatic adapter detection

• Condition: new

• Gender: for men

• Performance: up to 70 km of range per hour of charging

• Application: residential and commercial use

• Series: Universal Wall Connector

• Product format: ready-to-use device
